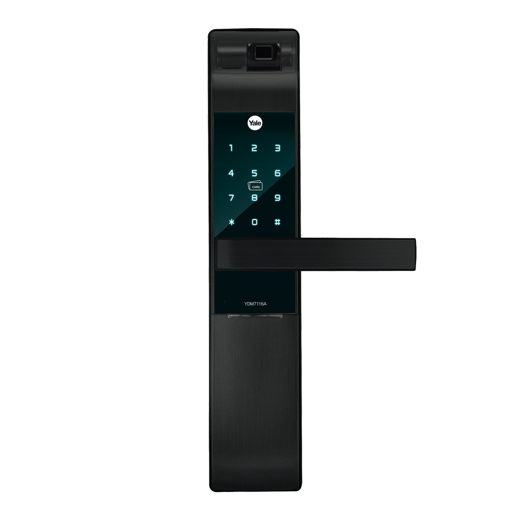

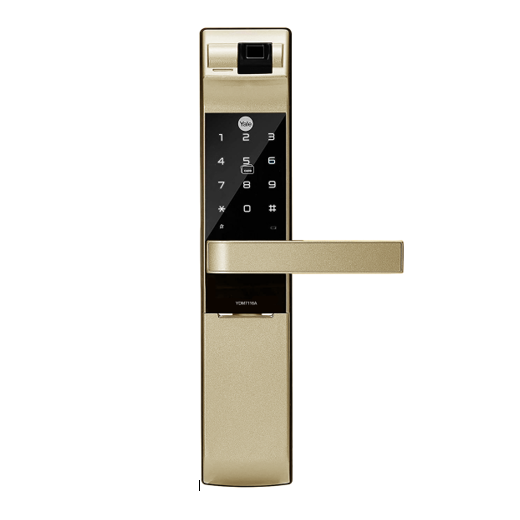

YDM7116A is having multiple access modes such as RFID Card, PIN Code, Fingerprint, Mechanical Key, with Yale Home Module Inside (provides Bluetooth Capability and ability to connect to Yale Home App) and Remote Access Through Yale Connect Wi-Fi Bridge(Optional).
Yale YDM7116A gives user all the access capabilities and works with Yale Connect Wi-Fi Bridge which enables user to open lock remotely from any location as long as the user have an Internet Access.
Features & Benefits:
- 5-in-one to access the lock (RFID Card, PIN Code, Fingerprint, Mechanical Key Override, with Yale Home Module Inside (provides Bluetooth Capability and ability to connect to Yale Home App) and Remote Access Through Yale Connect Wi-Fi Bridge(Optional).
- Voice Guide Feature
- Automatic Locking
- Anti-Panic Egress with Safe Handle
- Intrusion/Damage Alarm
- Low-Battery Alarm and Emergency Power Supply Terminal
- State of the Art One Touch Fingerprint Verification Method
- Smart Touchpad
- Lock Out Feature: After 5 unsuccessful attempts on entering an invalid code or Fingerprint, 3 minute lockout mode will be activated
- Internal Forced Lock
- Fake Pin Code
- Easy Registration of User Cards
- Missing User Cards Invalidation
- Emergency Mechanical Key
- Remote Control (Optional)
Technical Details:
- Mortise lock
- Can Register Up to 1 Different Fingerprint
- Can Register Up to 1 Different User Codes
- Can Register Up to 1 RFID Tags
- Mechanical Keys: 2 Keys
- Front Body : 4 .18mm (D) X 68mm (W) X 34 mm (H)
- Back Body : 38mm (D) X 72mm (W) X 344mm (H)
- Backset: 6 mm/7 mm
- Door Thickness : 4 -8 mm Wooden Doors
