JBL EON710 10-inch Powered PA Speaker with Bluetooth

Next Generation Innovation

Launched in 1995, JBL’s best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be. The JBL EON710 10-inch loudspeaker is part of JBL’s new EON700 Series of powered PAs, which represents a major step forward in innovation and technology: JBL engineers used exclusive, state-of-the-art design and measurement techniques to deliver the best-performing loudspeakers in their category, regardless of application. The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system. With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today’s working musicians and sound providers.


  •  Custom-designed 10-inch woofer
  •  2414H compression driver
  •  Redesigned high-frequency horn
  • Power: 1,300W Peak / 650W RMS
  •  Frequency response: 52Hz - 20kHz (-10) 65Hz - 20kHz (-3)
  •  Max SPL: 125 dB
  •  Dispersion: 110° H x 60° V
  •  Audio I/Os: 2 XLR Combo, 1 XLR passthrough
  •  Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
  •  Built-in 3-channel digital mixer

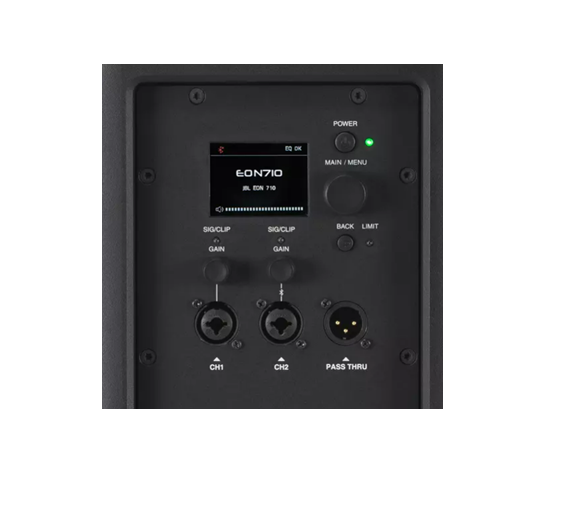

  •  Color backlit LCD screen provides easy access to functions
  •  Universal JBL Pro Connect app control
  •  Bluetooth 5.0 streaming and control
  •  Durable polypropylene cabinet and metal grille
  •  Ergonomic handle simplifies transport
  •  Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
  • Stackable cabinets for easy storage


Technical Specifications

  • System Type 10IN Powered Loudspeaker
  • Woofer Model 710G
  • Woofer Size 10"
  • Woofer Magnet Ferrite
  • Woofer Voice Coil 2"
  • Tweeter Model 2414H Compression Driver
  • Tweeter Size 1"
  • Tweeter Magnet Neodymium
  • Transducer
  • Impedence LF 4ohm rated, HF 8ohm rated
  • Max SPL 125dB @1m/4Pi
  • Freq Range -10 52Hz - 20kHz
  • Freq Range -3 65Hz - 20kHz
  • Hor Dispersion 110°
  • Vert Dispersion 60°
  • Power Rating 1300W peak / 650 RMS
  • AC Power Input 100V-120V or 220V-240V
  • Cooling Passive
