Vimar One-family kit 7in video plug-in supply

Notify me when this product is available:

ELVOX Door entry / Exclusive / Exclusive Made in Italy


One-family kit 7in video plug-in supply

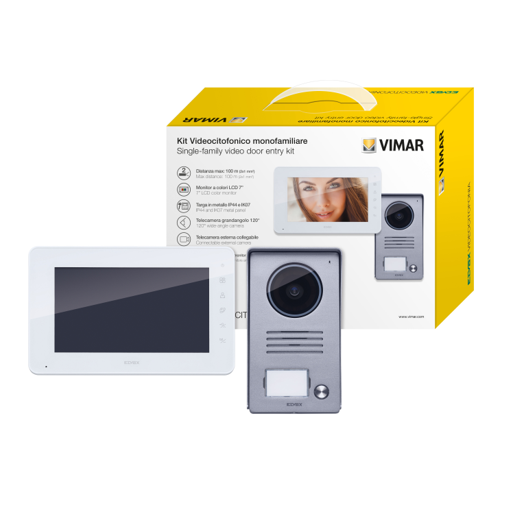

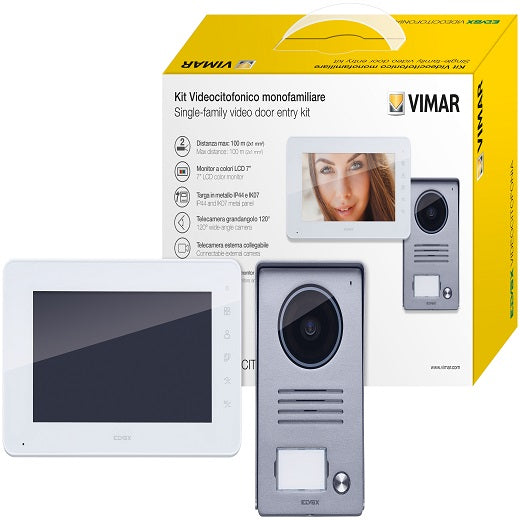

Video door entry kit containing 1 hands-free 7in LCD video Entryphone with capacitive keypad, 1 1-button audio/video entrance panel with rainproof cover, 1 24 Vdc 1 A supply unit with interchangeable plugs (EU, BS, US, AU) complete with surface mounting fixing brackets.

  •  The kits are ready to use and do not require any particular programming; maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  •  Expandable: up to 3 monitors can be associated with each call push button
  •  Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  •  Can be connected to an external camera for video surveillance
  •  Intercom function between indoor stations (of the same family)
  •  Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. ‘Mute’ function

Product Status

  • 3 - Active
  • Minimum order quantity
  • 1 NR
  • Sheets, Manuals, Documentation
  • Multilanguage User Manual (17837 kb)



Technical data

  •  Class group: Communication technique
  •  Class: Door station set
  •  With video: Yes
  •  Number of indoor stations: 1
  •  Number of outdoor stations: 1
  •  Installation technique: 2-wire
  •  Mounting method indoor station: Surface mounted (plaster)
  •  Colour indoor station: White
  •  Mounting method outdoor station: Surface mounted (plaster)
  •  Expandable to max. number of outdoor stations: 2
  •  Picture system: PAL
  •  Can be connected to smartphone: No
  •  Internal communication: Yes
  •  Hands free: Yes
  •  With day/night function: No
  •  Zoom, pan/tilt function: No
  •  With memory function: No
  •  Screen diagonal: 177,80 mm
  •  Screen diagonal (inch): 70
  •  Manual adjustable camera: No
  •  Hearing aid compatible: Yes
  •  Material outdoor station: Aluminium



Certifications

  •  00. CE Marking - EU
  •  19. NOM - Mexico
  •  35. RCM - Australia
  •  37. Marking - Morocco
  •  92. RoHS UAE
  •  99. WEEE Directive (download)
  •  Colour outdoor station: Grey
  •  Expandable to max. number of indoor stations: 2
