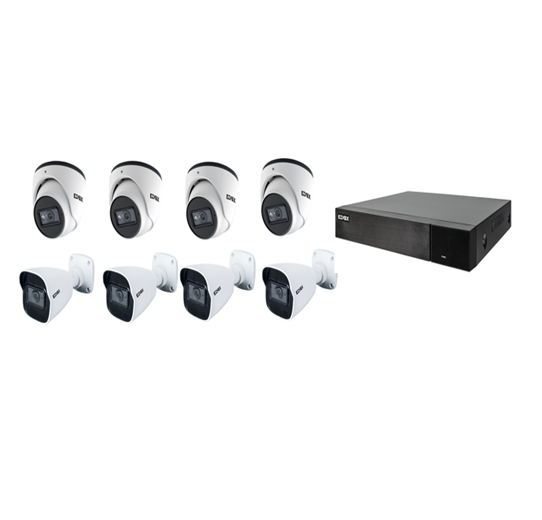

VIMAR ELVOX 8pcs 2 MPx camera

Made in Italy

ELVOX CCTV / Digital IP / Bullet cameras

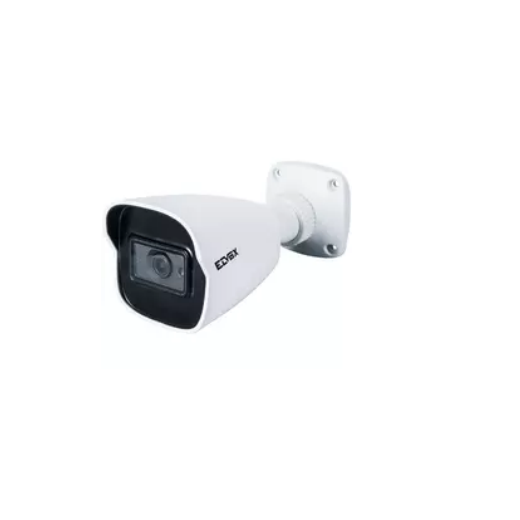

Bullet IR IP 2Mpx cam - 2,8mm H.265

Product Status

4 - Active

Minimum order quantity

1 NR

Sheets, Manuals, Documentation

Multilanguage instructions sheet (642 kb)

Technical data

•  Class group: Alarm installations, emergency call and signalling
•  Class: Camera for monitoring system
•  Mounting method: Wall/ceiling
•  Scope of application: Universal
•  Picture system: PAL
•  Property picture system: Colour
•  Colour: White
•  Wireless: No
•  Type of interface: Wi-Fi
•  With IR lamp: Yes
•  Vandal proof: No
•  Supply voltage: 12,00 - 12,01 v
•  Voltage type: DC
•  Diameter: 75 mm
•  Height: 75,00 mm
•  Width: 75 mm
•  Depth: 168,00 mm

ELVOX CCTV / Digital IP / Dome cameras

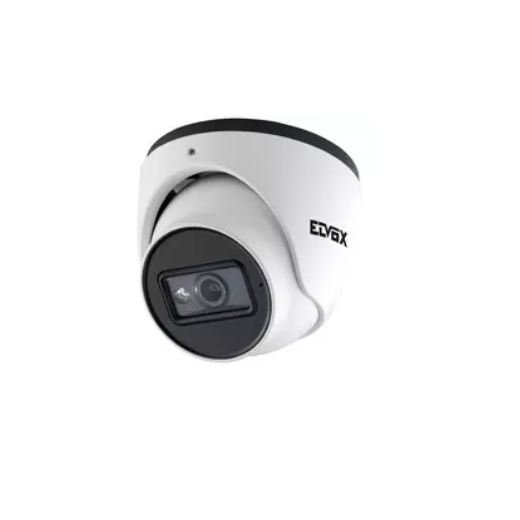

Dome IR IP 2Mpx cam - 2,8mm H.265

Day & Night colour IP Dome camera, CMOS 1/2.8in sensor, 2 Mpx resolution

(1920x1080), 2.8 mm fixed focus lens, mechanical IR filter, H.265 Dual

Stream, PoE or 12 Vdc power supply, IR 20-30 20-30 m, AV, WDR, ROI,

3DDNR, HLC, BLC, Mask, Motion, Smart IR, RTSP functions, ONVIF protocol,

protection degree IP67. Dimensions: Ø 95x83 mm. Weight 430 g

Product Status

4 - Active

Minimum order quantity

1 NR

Sheets, Manuals, Documentation

Multilanguage instructions sheet (4134 kb)

Technical data

> Class group: Alarm installations, emergency call and signalling

> Class: Camera for monitoring system

> Mounting method: Wall/ceiling

> Scope of application: Universal

> Picture system: PAL

> Property picture system: Colour

> Colour: White

> Wireless: No

> Type of interface: Wi-Fi

> With IR lamp: Yes

> Vandal proof: No

> Supply voltage: 12,00 - 12,01 v

> Voltage type: DC

> Diameter: 95 mm

> Height: 95,00 mm

> Width: 83 mm

> Depth: 95,00 mm

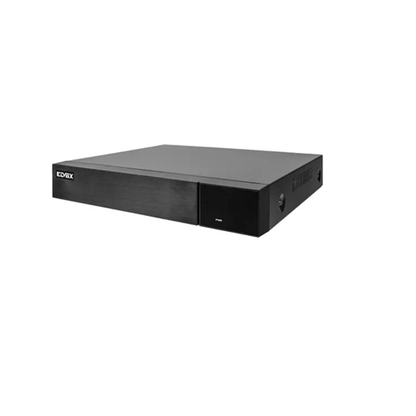

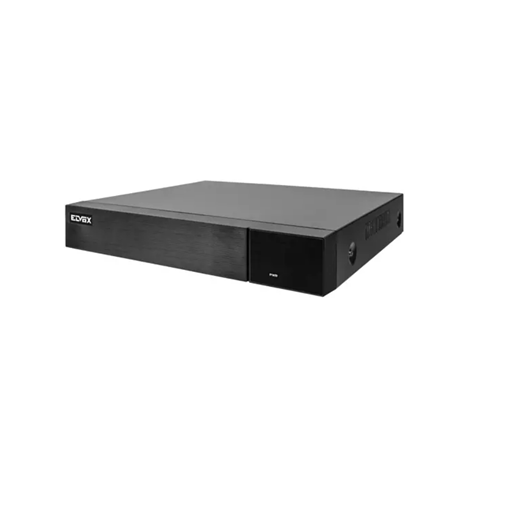

8CH PoE 6Mpx H.265 HDD 1TB NVR

• Class group - Alarm installations, emergency call and signalling
• Class -Matrix memory for video surveillance system
• Recording type -Digital
• Construction type of device -Desktop
• Max. number of video inputs -8
• With video motion detector -Yes
• With DVD -No
• Redundant power supply -No
• Power consumption -6 W
• Max. data transmission rate -100
• Processor type -Other
• Number of ports LAN -1
• Number of ports 1000 Mbps Mini GBIC -0
• Number of combination-ports RJ45/Mini GBIC -1
• Number of ports PoE -8
• Power over Ethernet (PoE) -802.3 af (PoE)
• Operating system - Linux
• Number of preinstalled hard discs -1
• Memory capacity per hard disc -1
• RAID 0 capable -No
• RAID 1 capable -No
• RAID 5 capable -No
• Hot-swappable hard disk capability -No
• Width -222 mm
• Height -42 mm
• Depth 255 mm
