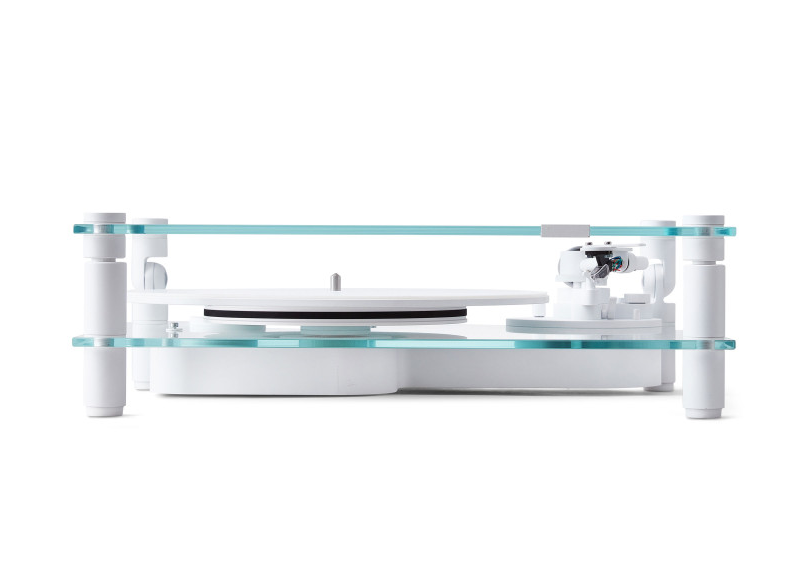

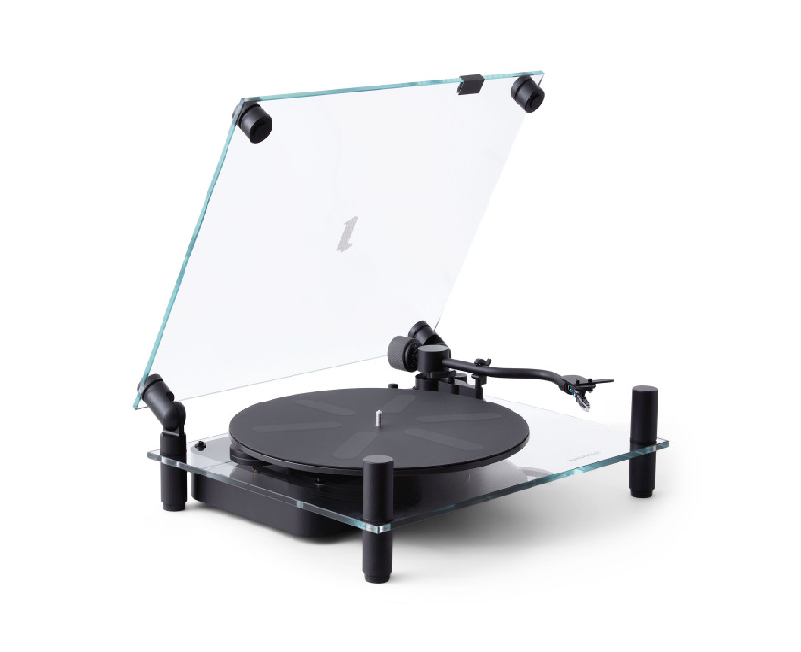

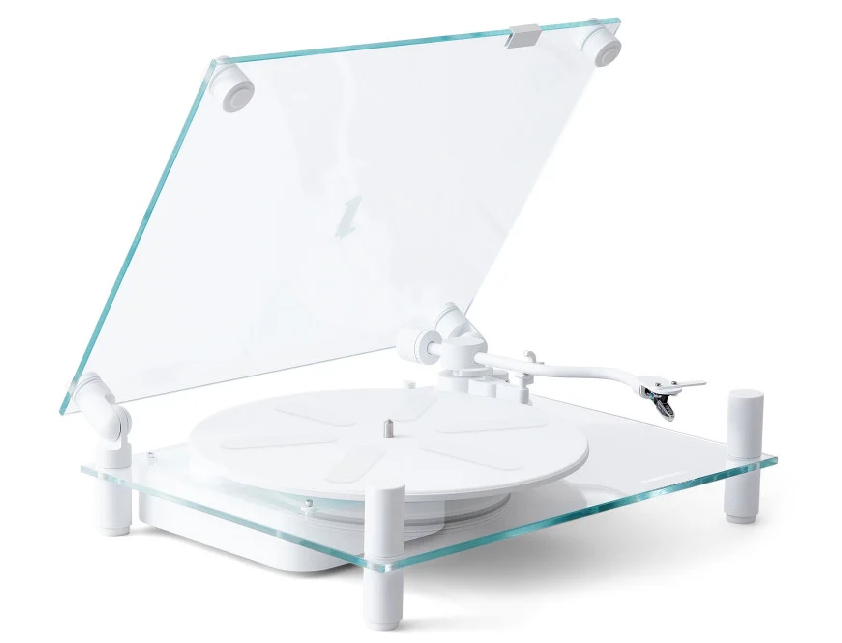

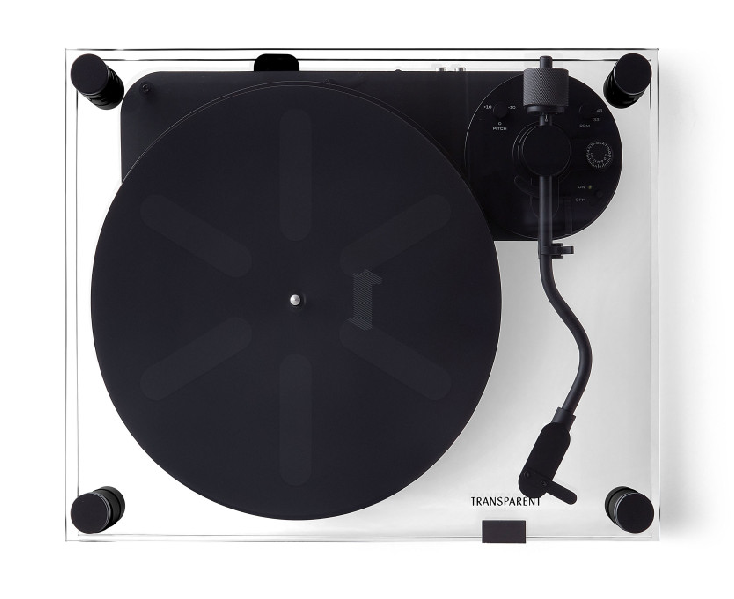

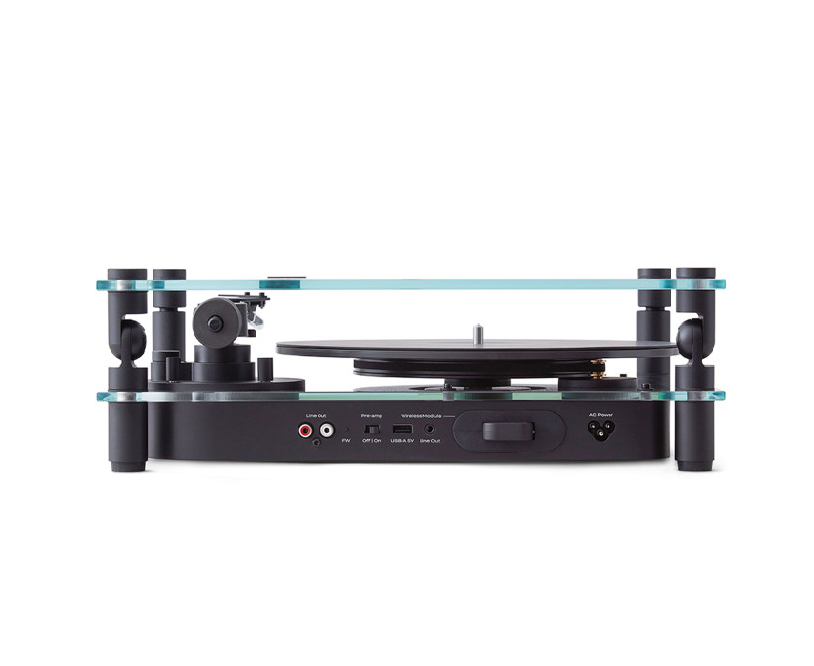

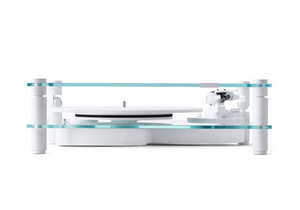

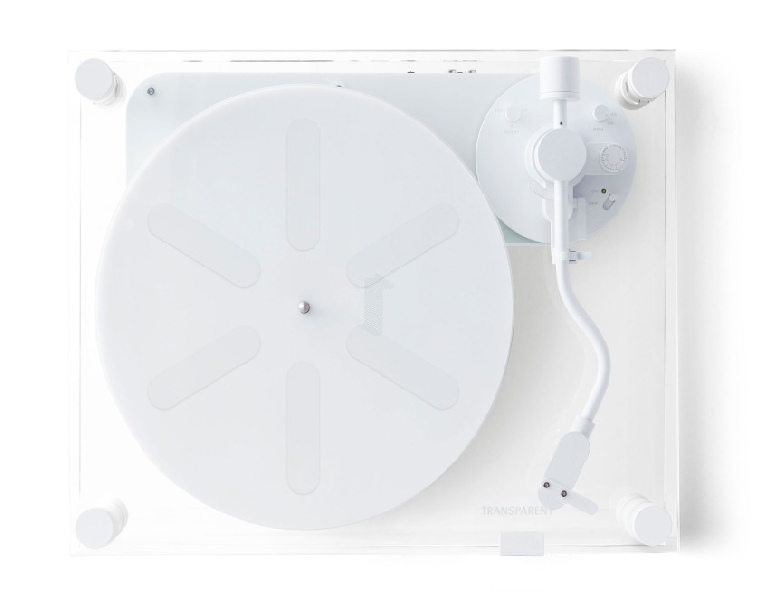

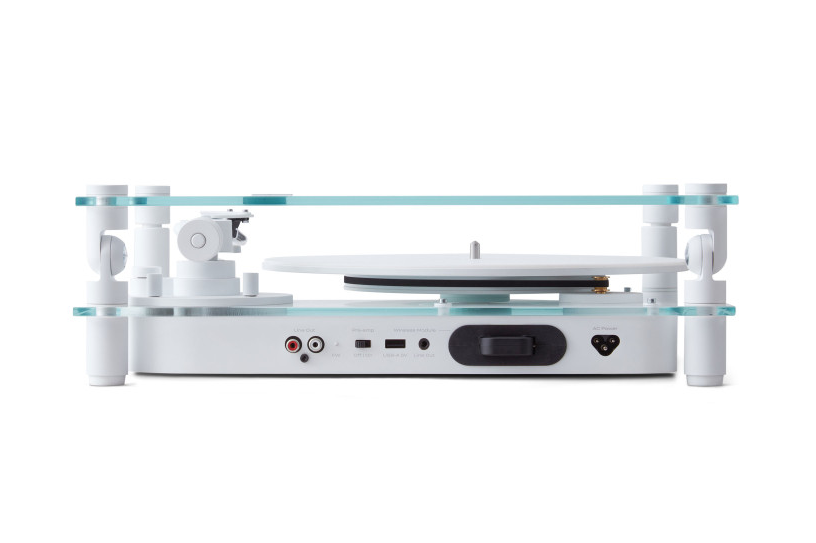

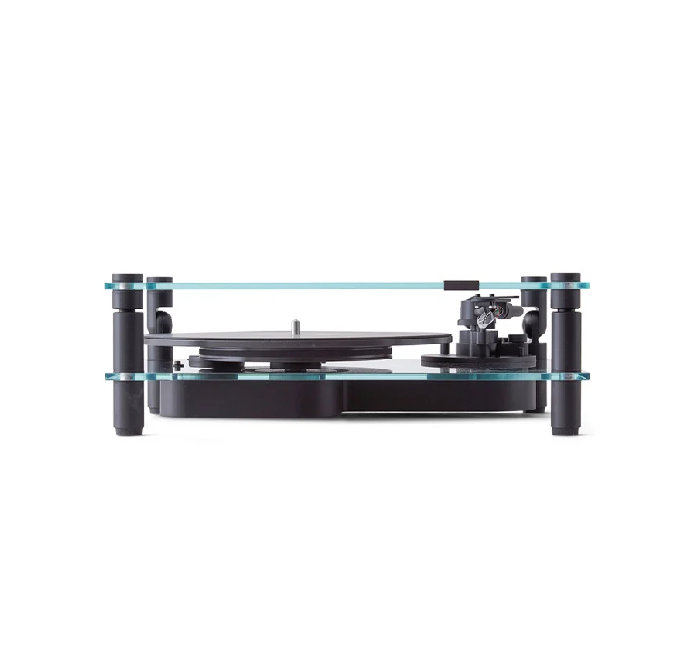

The Transparent Turntable is a reinvention of a classic vinyl record player, designed for a modern home and an ever evolving technology. The Transparent Turntable is meticulously crafted out of aluminium and tempered glass. It is a belt driven system with a built in phono stage, and a pre-mounted cartridge from Danish Ortofon.
Cartridge: Ortofon OM5E (MM)
Stylus: Elliptical Diamond
Cartridge Mount: Standard ½ in
Headshell Mount: Standard SME
Wireless Module: Bluetooth 5.0
Phono Stage: Built in (with on/off switch)
Nominal speeds: 33 ⅓ and 45 RPM
Speed variance: 33: ±0.70% 45: ±0.60%
Wow and flutter: 33: ±0.25% 45: ±0.25%
Signal to noise: ≥ 70dB at 1kHz, 0dB A-weighted
Frequency range: 20-25.000Hz +3 / -3
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Replacement stylus unit: Ortofon Stylus 5E
Effective tonearm mass: 13.5g
Effective tonearm length: 220mm / 8.7in
Overhang: 19.5mm / 0.77in
Max power consumption: 15W
Dimensions (W x H x D): 410 x 125 x 320 mm / 16 x 5 x 13 in
Weight: 6,5kg / 14lb
Dimensions packaging (W x H x D): 580 x 240 x 460 mm / 23 x 10 x 19 in
Weight incl. packaging: 7,0kg / 15lb
Rated input voltage: 100~240Vac, @ 50/60Hz.
Bluetooth version: 5.0
Normal or True Wireless (stereo) pairing
3.5 mm port for digital optical and analogue signals
µUSB port for 5V power
RX and TX mode (switch)
Chip: Qualcomm CSR8670C
Codec: aptX LL / SBC / MP3 / AAC
Low Latency: <40ms
Gold-plated contacts for perfect signal transmission
