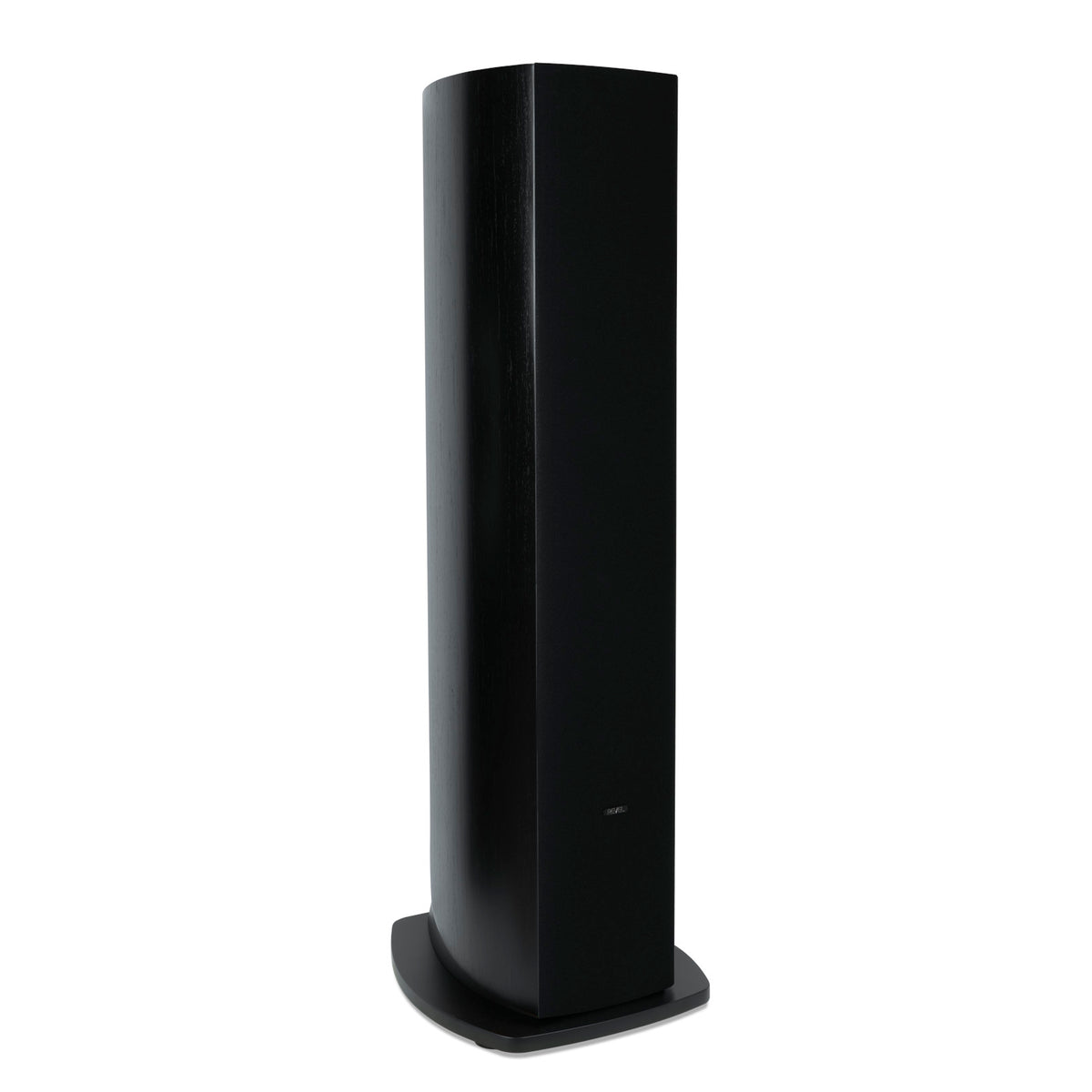

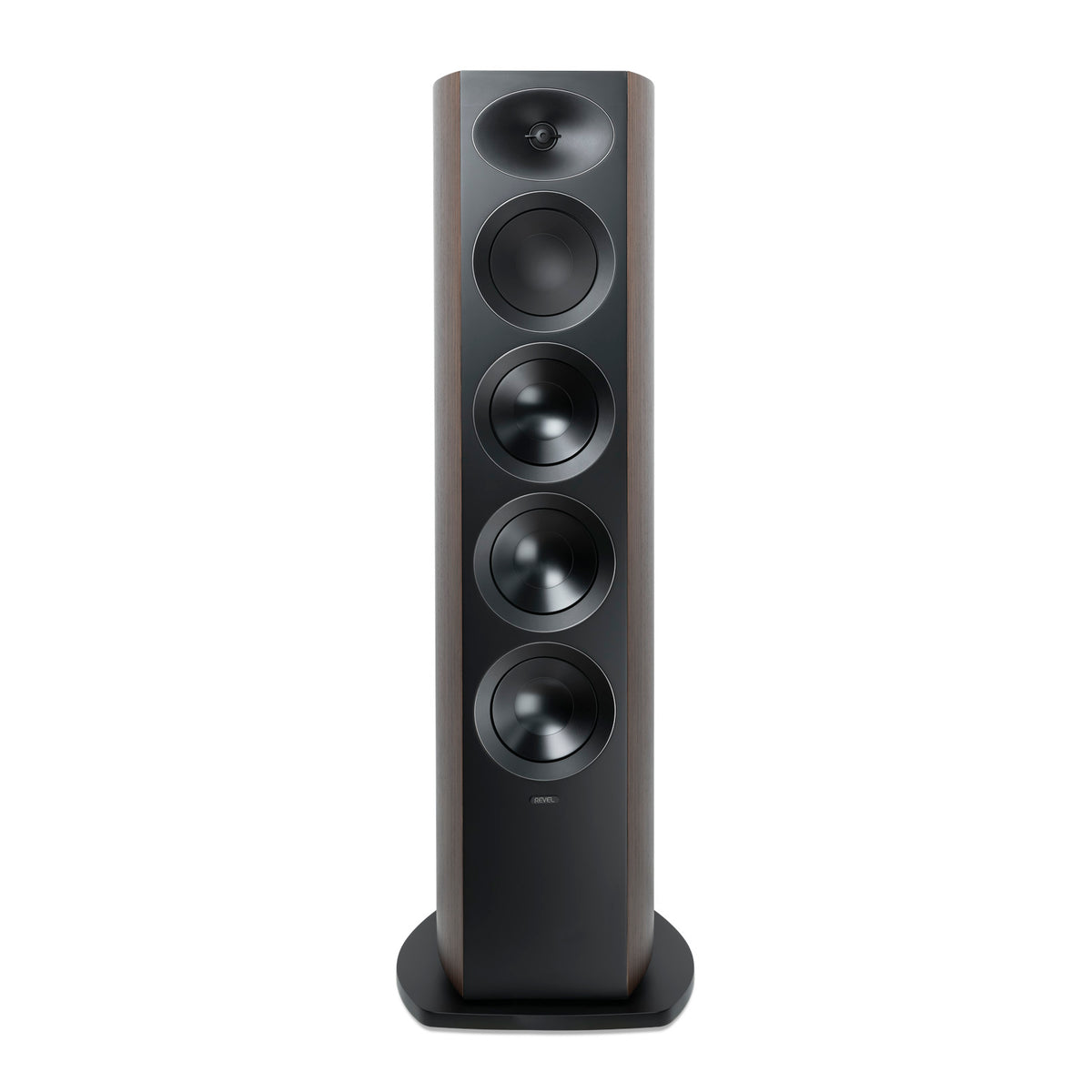

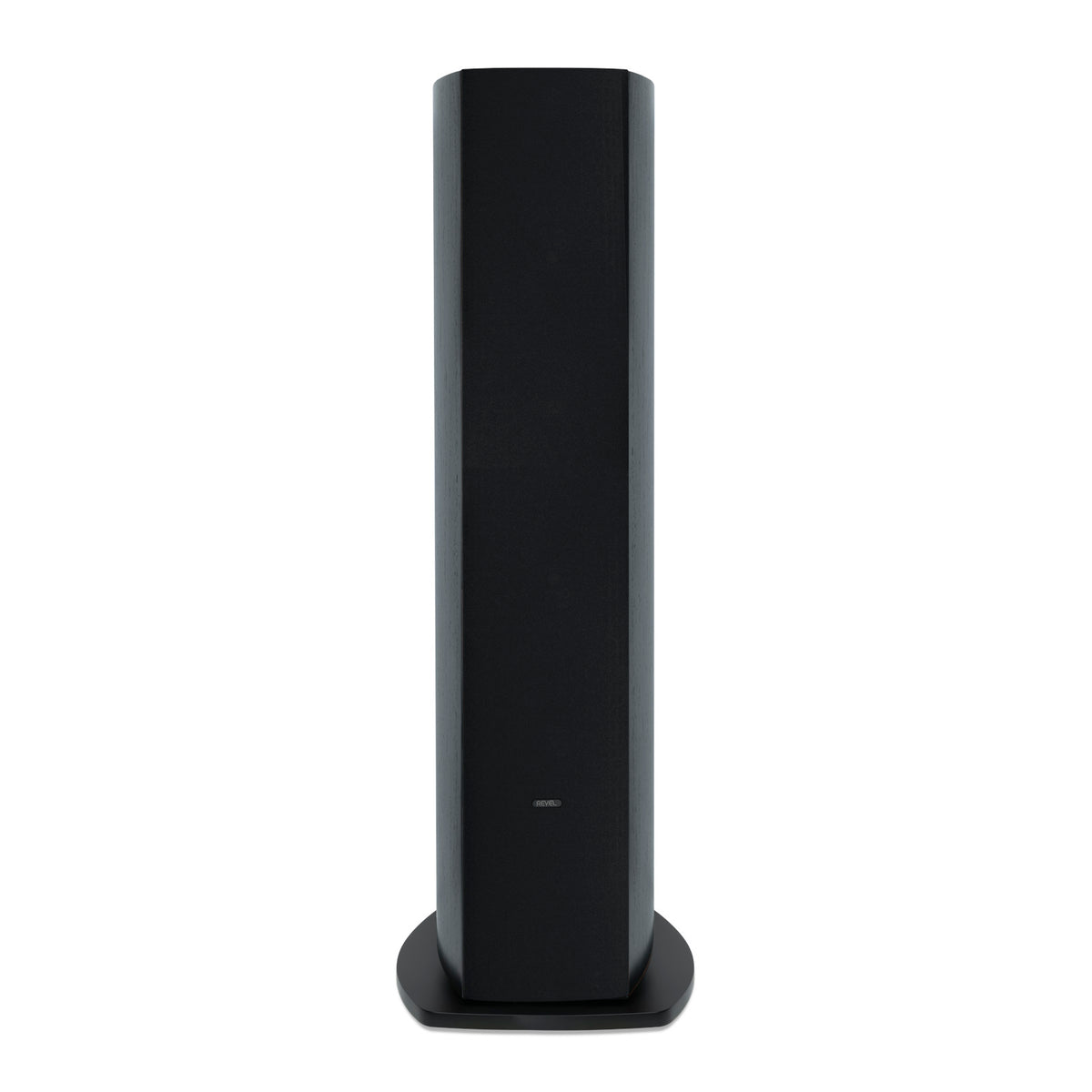

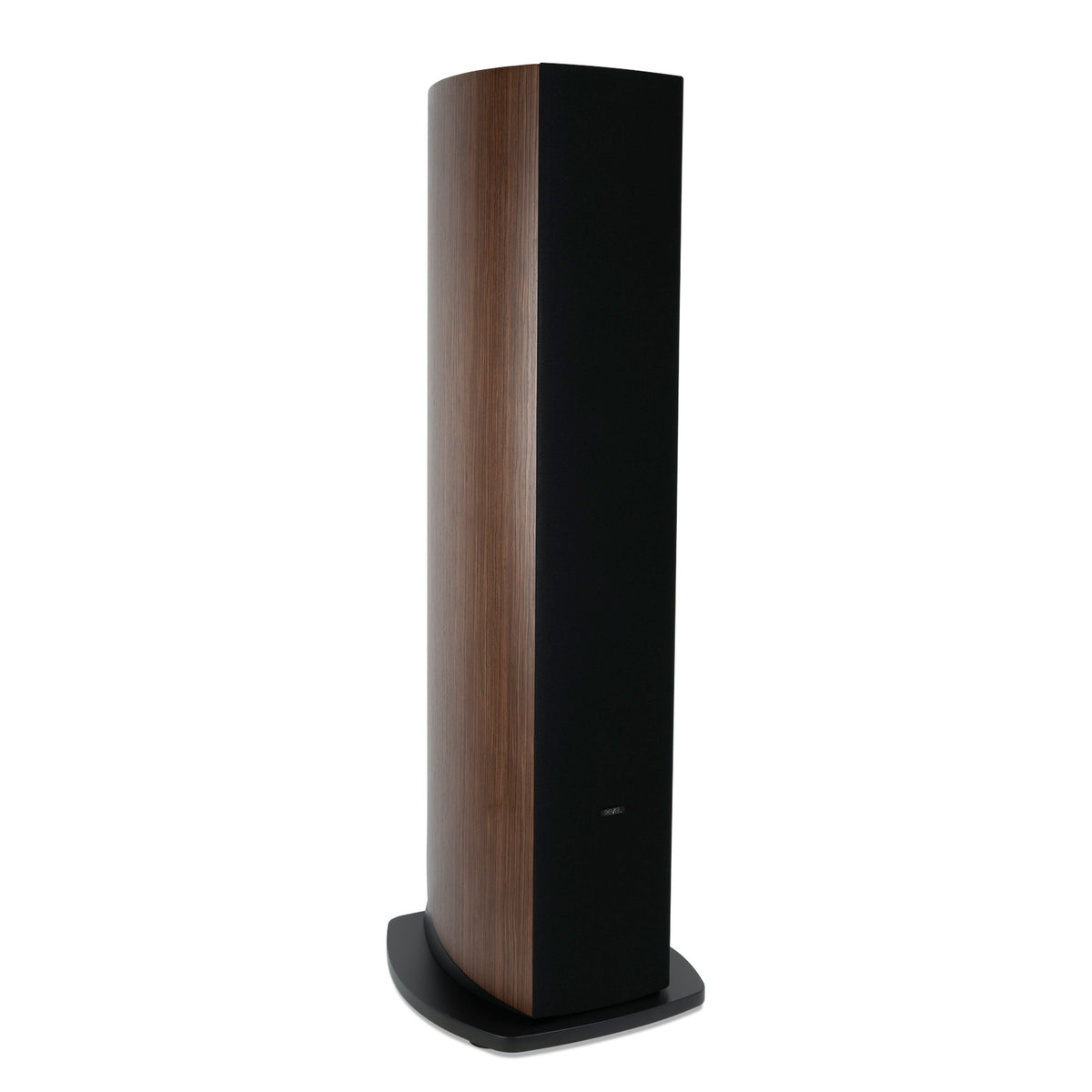

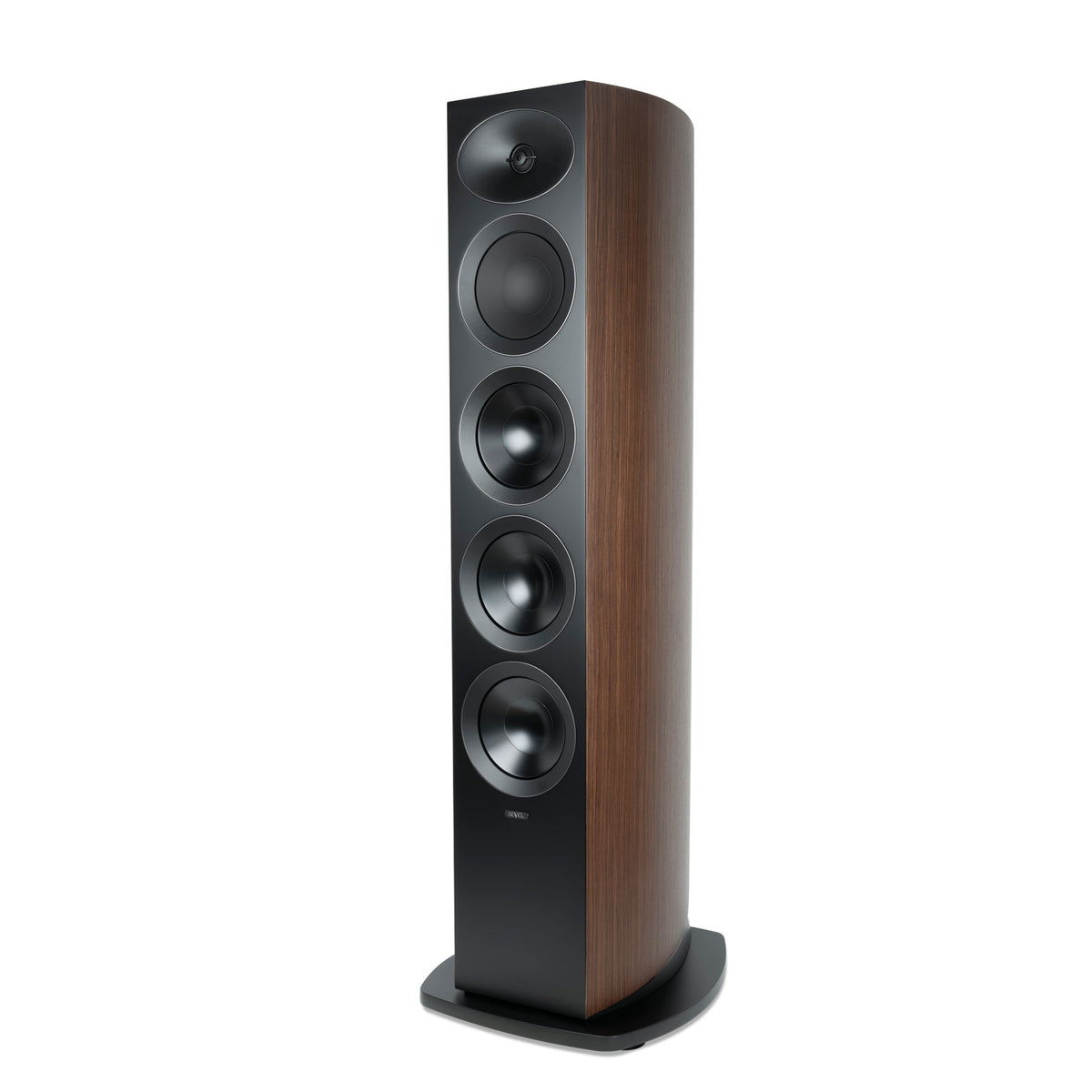

Revel Performa4 F346 Floorstanding Loudspeaker - Each

The Performa4 Series is based upon Revel’s acoustic DNA including a new 7th generation waveguide with acoustic lens and Deep Ceramic Composite (DCC™) and Micro Ceramic Composite (MCC) transducers. The cabinets and overall industrial design exude modern style while maintaining visual cues that identify with the heritage of the Revel brand.

Born from decades of world-class loudspeaker innovation, the Revel F346 stands as the flagship floorstanding model in the Performa4 series. It features three 6.5-inch (165mm)
Micro Ceramic Composite (MCC) cone woofers, a 6.5-inch (165mm) Deep Ceramic Composite (DCC) cone midrange and a 1-inch (25mm) DCC dome tweeter mounted in a 7th-generation
Acoustic Lens waveguide. These advanced components work in harmony with a precision crossover network and a bass-reflex tuned port enclosure to achieve unmatched audio accuracy. With the F346, it’s just you and the pure beauty of your music.

F346 Highlights

• Precision 3-Way Crossover
• 1-inch (25mm) DCC Dome Tweeter with Acoustic Lens and 7th-Generation Waveguide
• Midrange Driver: 1 x 6.5 in (165mm) Deep Ceramic Composite (DCC) Cone Driver
• Low Frequency Drivers: 3 x 6.5 in (165 mm) Micro Ceramic Composite (MCC) Cone Woofers
• Inverted surrounds and trim ring cover
• Newly patented cast frames
• Magnetically attached grille

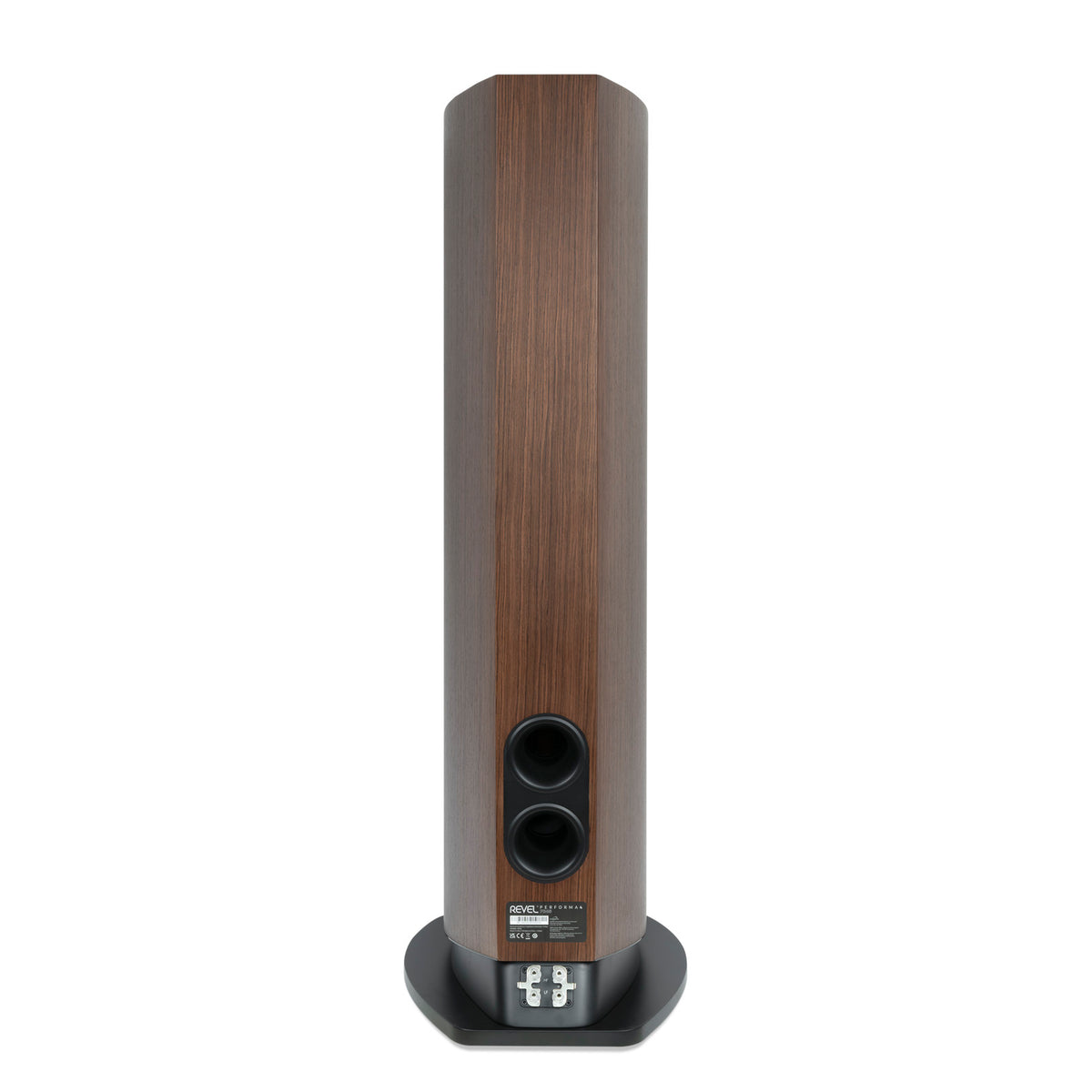

• Enclosure Tuning: Bass-Reflex via Dual Rear-Mounted Ports
• Fine-tuned via anechoic EQ when using ARCAM SA35, SA45, and AV products

General Specifications

• Dimensions 44.4 in x 14.1 in x 16.3 in (1127 mm x 357.33 mm x 414.48 mm)
• Product Weight 87.5 lbs. (39.7 kg)
• Shipping Weight 114.6 lbs. (52 kg)
• Shipping Units of Measure Each
• Nominal Impedance 6 Ohms
• Sensitivity @ 1m, 2.83V 88 dB
• Recommended Amplifier Power 20-250W
• Frequency Response +/-6 dB 30 Hz - 40 kHz
• Crossover Frequency 275 Hz / 1.7 kHz
