REVEL M55XC 5.25" 2-WAY EXTREME CLIMATE LOUDSPEAKER

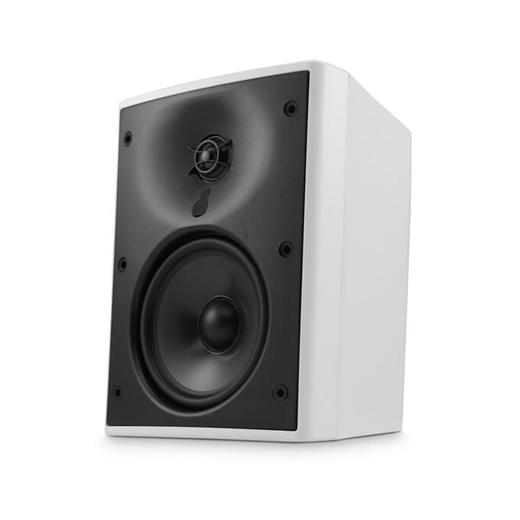

The Revel M55XC is a 2-way 5.25-inch / 130mm Extreme Climate outdoor loudspeaker designed to deliver true high-performance Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid or wet.



M55XC Highlights

  • 5.25-inch / 130mm Carbon-infused Polypropylene cone woofer
  • 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
  • 70V / 100V 60W variable tap with 8-ohm bypass

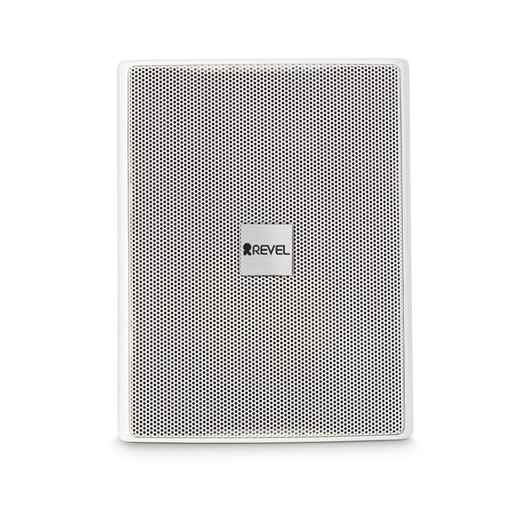

  • Durable polymer enclosure with weather-coated Aluminum grille
  • Stainless Steel input screw terminals with weather protection cover
  • Discrete InvisiBall® mounting system with flexible positioning
  • IP56 Weather Protection Rating
  • Available in Black or White finish

General Specifications

High Frequency Driver Components 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
Low-Frequency Driver Components 5.25-inch / 130mm Carbon-infused Polypropylene cone woofer

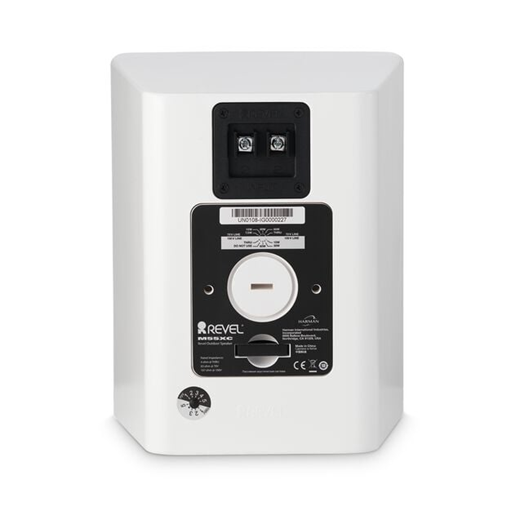

Input Connections Stainless Steel barrier strip screw terminals
Frequency Range 90Hz - 22kHz -3dB
Recommended Amplifier Power 10 - 60 Watts RMS
Transformer Taps 70V 60W, 30W, 15W, 7.5W, 8-ohm bypass 100V 60W, 30W, 15W, 8-ohm bypass
Crossover Frequencies 2.4kHz
Low Frequency Extension -10dB @ 60Hz, -6dB @ 74Hz, -3dB @ 90Hz
Impedance 70V / 100V 60W variable tap with 8-ohm bypass
Sensitivity 88dB @ 2.83V / 1m
Enclosure Type Sealed
Mounting InvisiBall® mounting system
Finishes Black or White
Dimensions (H X W X D) 9.3 x 7.4 x 5.8 in (236 x 188 x 149 mm) 8.0 in (200mm) deep when mounted on InvisiBall wall mount
Weight 8.2 lb (3.7 kg)
Included Accessories Input terminal weather cover, InvisiBall wall mount, 6 x 100mm hex key
