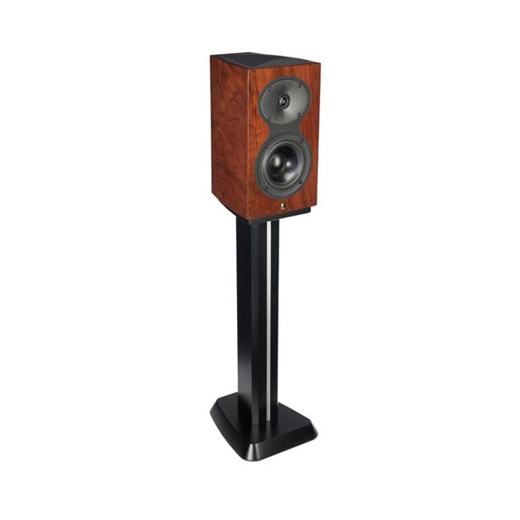

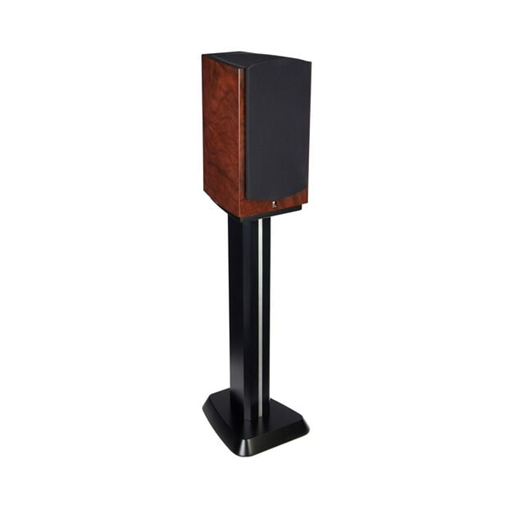

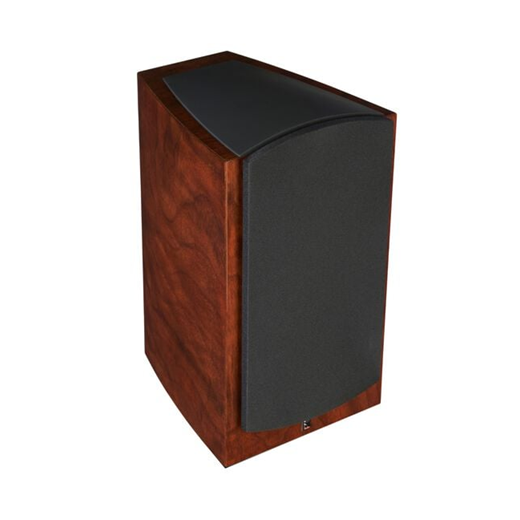

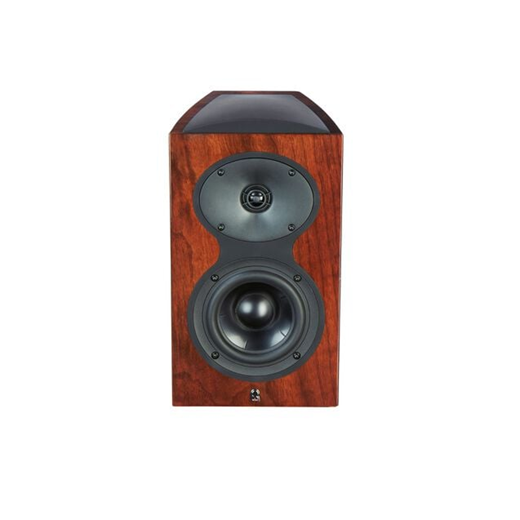

Revel M105 2-Way Bookshelf Monitor Loudspeaker


Performa3 bookshelf loudspeakers are true full-range loudspeakers that blend-in easily with your existing décor. They deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.


M105 Highlights

  • Transducers feature motor-system distortion-reduction mechanisms that stabilize the flux field during operation
  • Ribbed aluminum cones achieve piston like behavior eliminating major sources of resonance
  • New waveguides provide consistent sound over a wide listening area
  • Enclosures created by Italian luxury cabinetmakers
  • Fluid-model port designs keep distortion low
  • Advanced crossovers optimize timbre accuracy both on axis and throughout the room

General Specifications

Height 14" (35.6 cm) Note Optional Stand adds 25" (63.5 cm)
Width 7.9" (20 cm)
Depth 9.8" (24.8 cm)
Weight 16 lb (7 kg) Note Optional Stand adds 8 lb (4 kg)
Crossover Frequencies 2.3 kHz
Enclosure Type Bass-reflex via Rear-firing Port
Finishes Piano Black, Piano White, or High Gloss Walnut
High-frequency Driver Components 1” (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide
Nominal Impedance 8 Ohms
Input Connections Binding Posts
Low Frequency Extension -10dB@44Hz -6dB@56Hz -3dB@60Hz
Low-frequency Driver Components 5.25” (13.3 cm) Aluminum Cone, Cast-frame Woofer
Recommended Amplifier Power 50-120
Sensitivity 86dB
