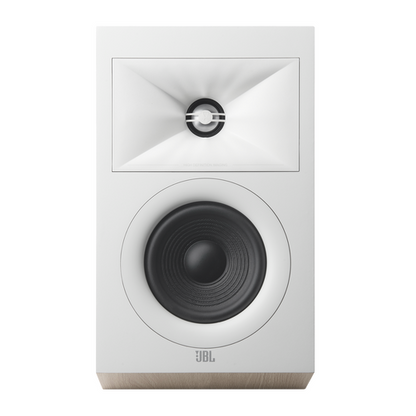

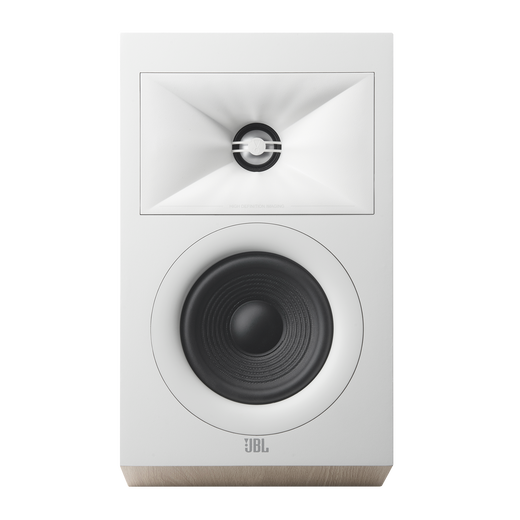

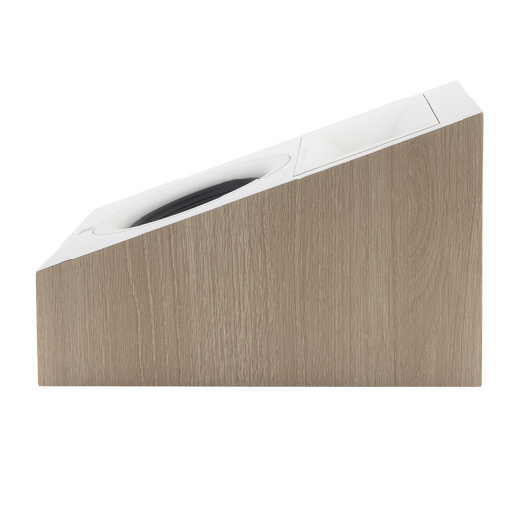

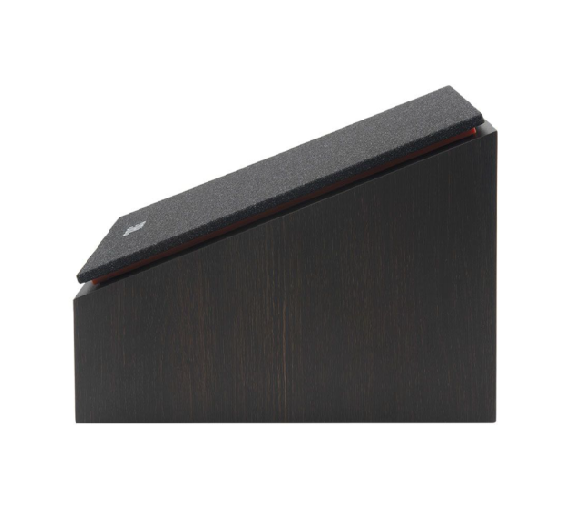

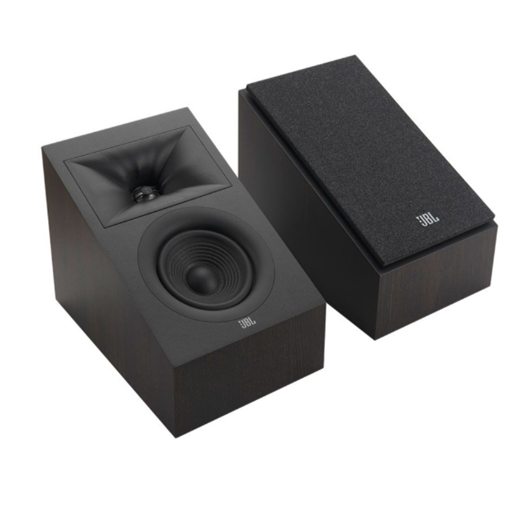

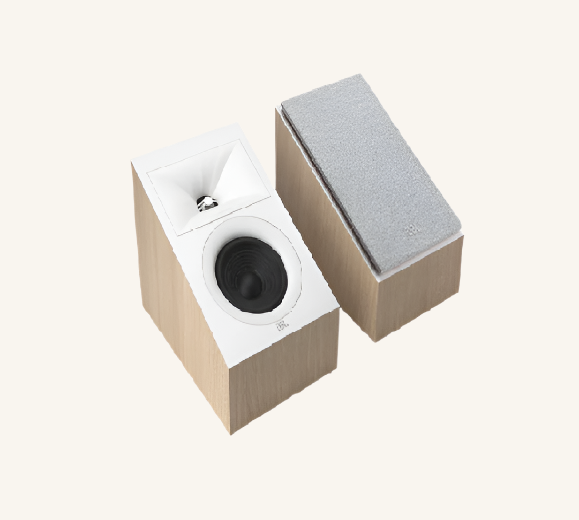

Designed and engineered in our world-famous Acoustic Engineering Center of Excellence in Northridge, California, Stage 240H is a compact multi-purpose loudspeaker suitable for surround or elevation channel use. With the flip of a switch, it is a Dolby Atmos enabled add-on, or a wall mounted elevation or surround loudspeaker. The 240H features a 2-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and a 4.5-inch (114mm) Poly cellulose cone woofer that provides deep, signature JBL bass.
Specifications:
- Type: Dolby Atmos® Surround Sound Loudspeaker System
- Low Frequency Driver: 4.5-inch (114mm) Polycellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-150W
- Frequency Response ≡ 6dB: 85Hz-25kHz
- Sensitivity @ 1M, 2.83V: 87dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.6kHz
- Enclosure Tuning: Sealed
- Finish: Espresso or Latte
- Dimensions (HxWxD): 6.9in x 7.1in x 10.6in (176mm x 180mm x 270mm)
- Product Weight: 7.6 lbs. (3.5 kg)
- Shipping Units of Measure: Pair
Features:
-
4.5-inch (114mm) Polycellulose Ribbed Cone Woofer
- Precision 2-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodized Aluminum Tweeter

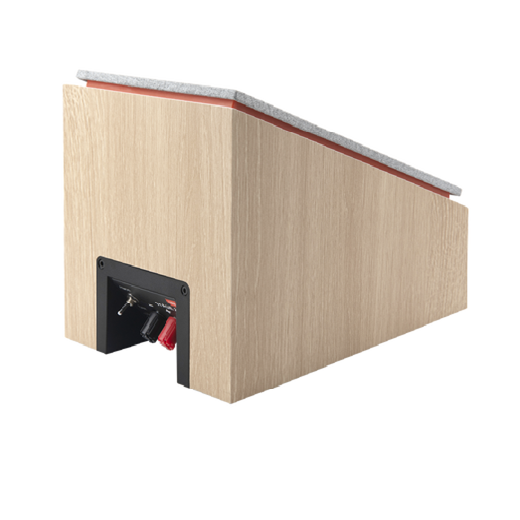

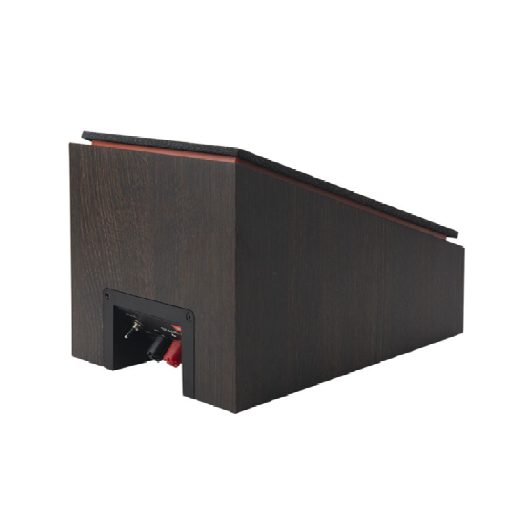

- Switchable Modes (Dolby Atmos® or Surround/Height)
- Integrated Wall Mount Bracket
- ¼-20 Insert for Aftermarket Mounts
- 5-Way Binding Posts
- Anti-Slip Pad
What's in the Box?
- 1 x 240H
- 1 x Anti-Slip Pad

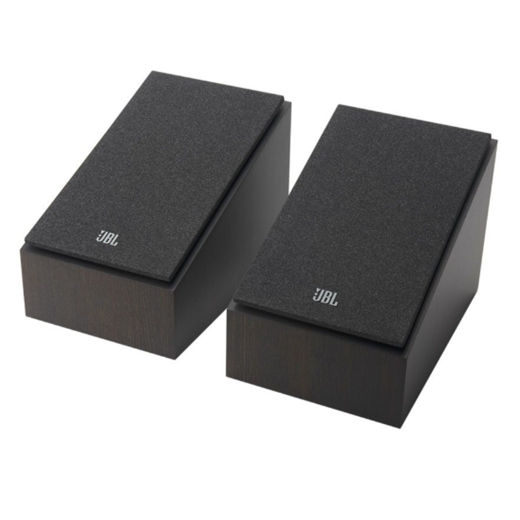

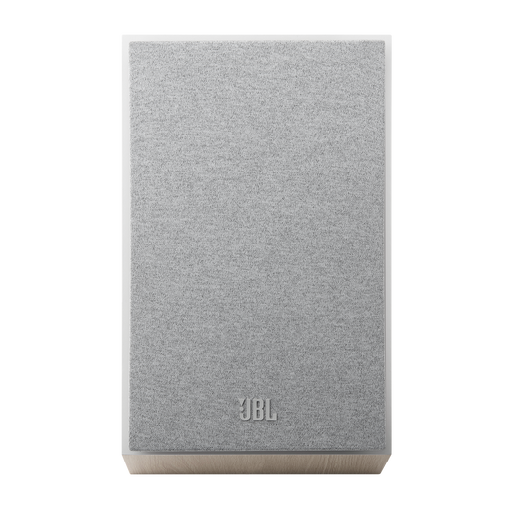

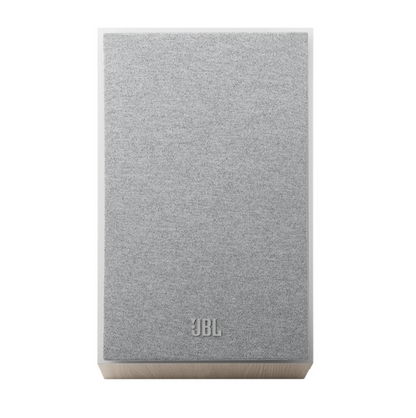

- 1 x Speaker Grille
- 1 x Safety Sheet
- 1 x Quick-Start Guide
