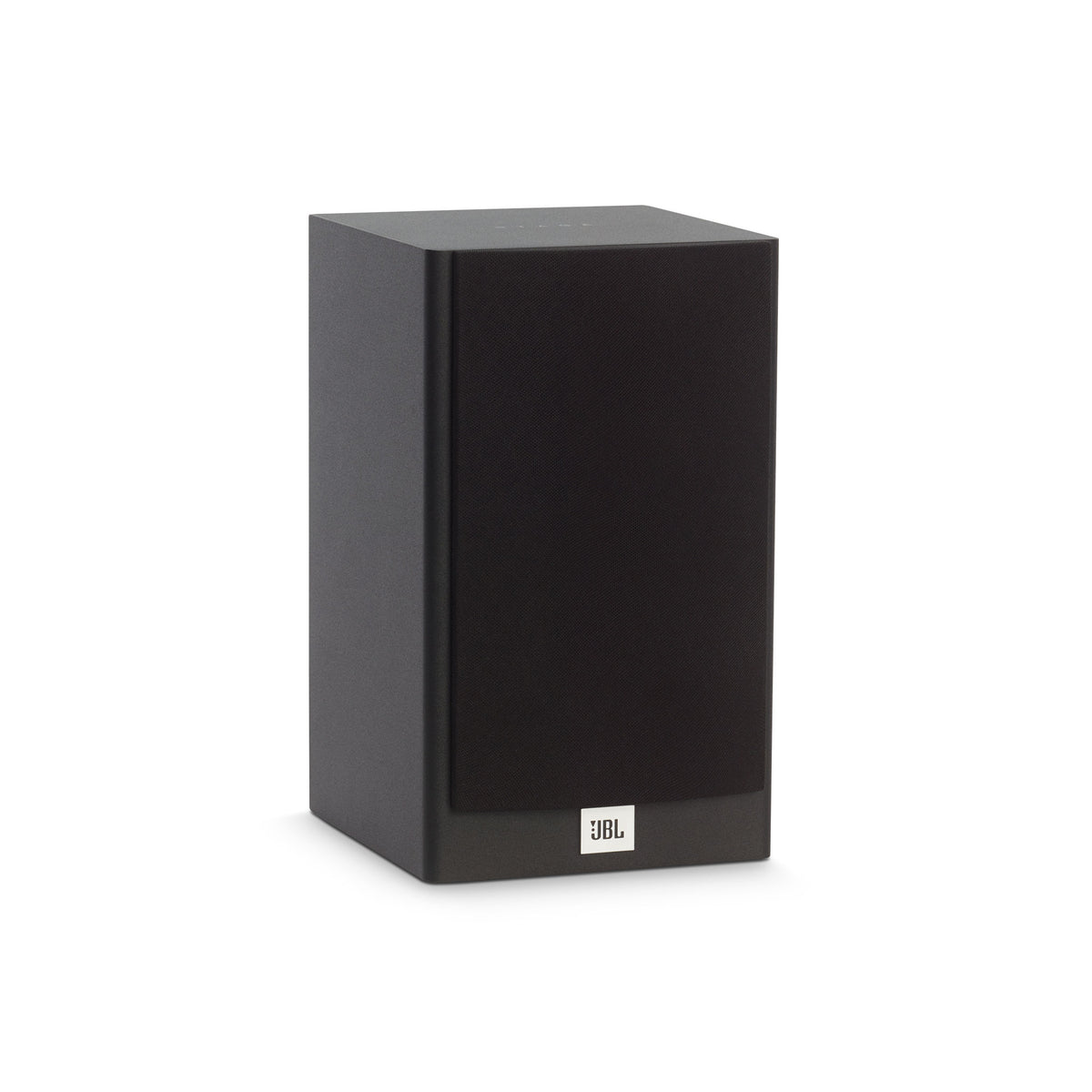

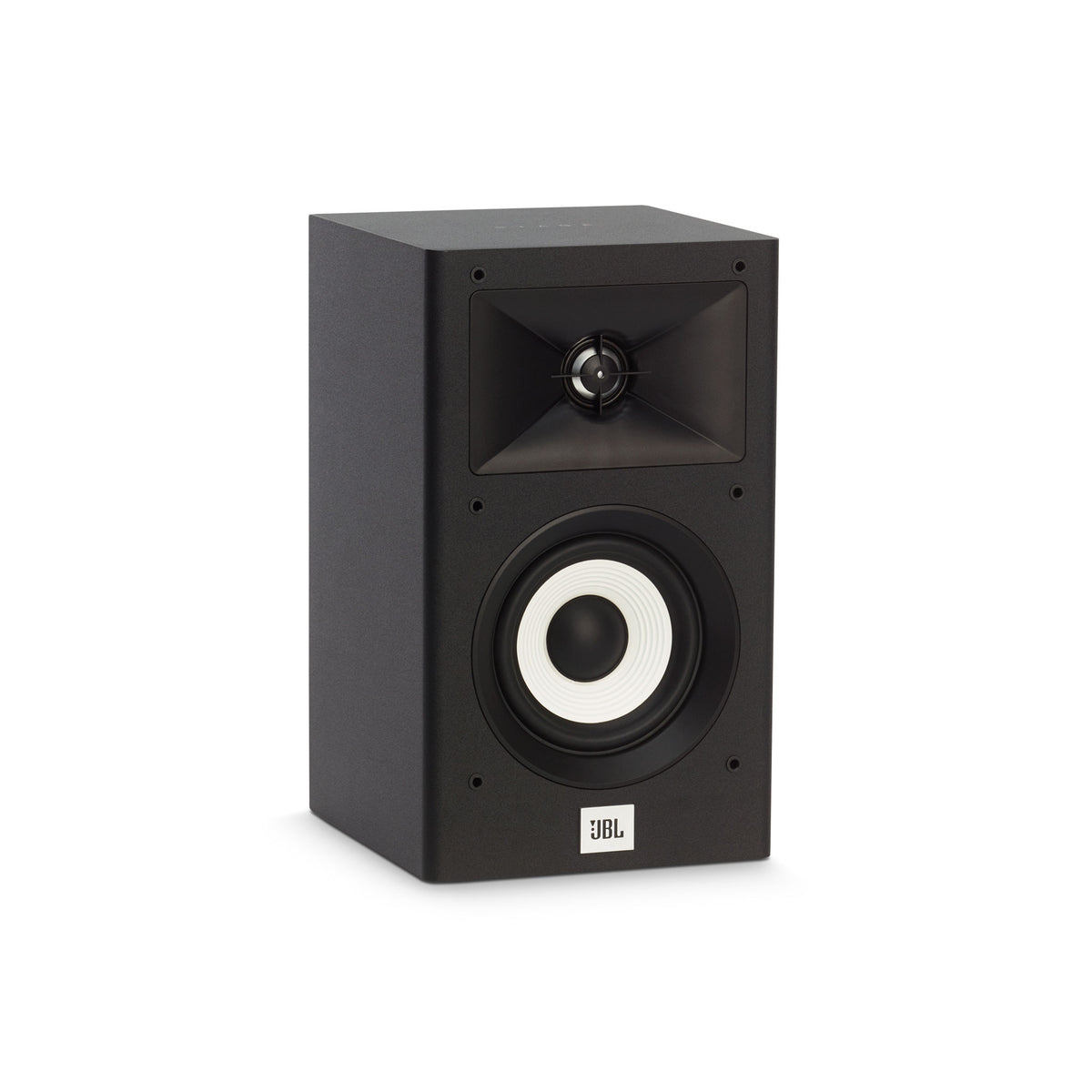

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the Stage A120 is the 4.5-inch 2-way bookshelf loudspeaker of the JBL Stage Series. The narrow footprint features a 2-way design with patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Aluminum dome tweeter, and 4.5-inch (114mm) Polycellulose cone woofers for signature JBL bass.
Features
- Two-tone unique design for wood
- JBL engineering high-defi nition imaging waveguide design and 1" aluminum dome tweeters
- Long excursion powered subwoofer
Technical Specifications
- STAGE A120
- 2 way, 4.5" woofer, 1" aluminum tweeter bookshelf/surround
- loudspeakers
- 4.5" (114mm) Polycellulose Low-Frequency Woofer
- New High Definition Imaging (HDI) Waveguide
- 1" (25mm) Aluminum Dome Tweeter
- Recommended Amplifier Power: 20 – 125W
- Frequency Response: 60Hz – 40kHz
- Sensitivity: 86dB @ 1M, 2.83V
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 3.2kHz

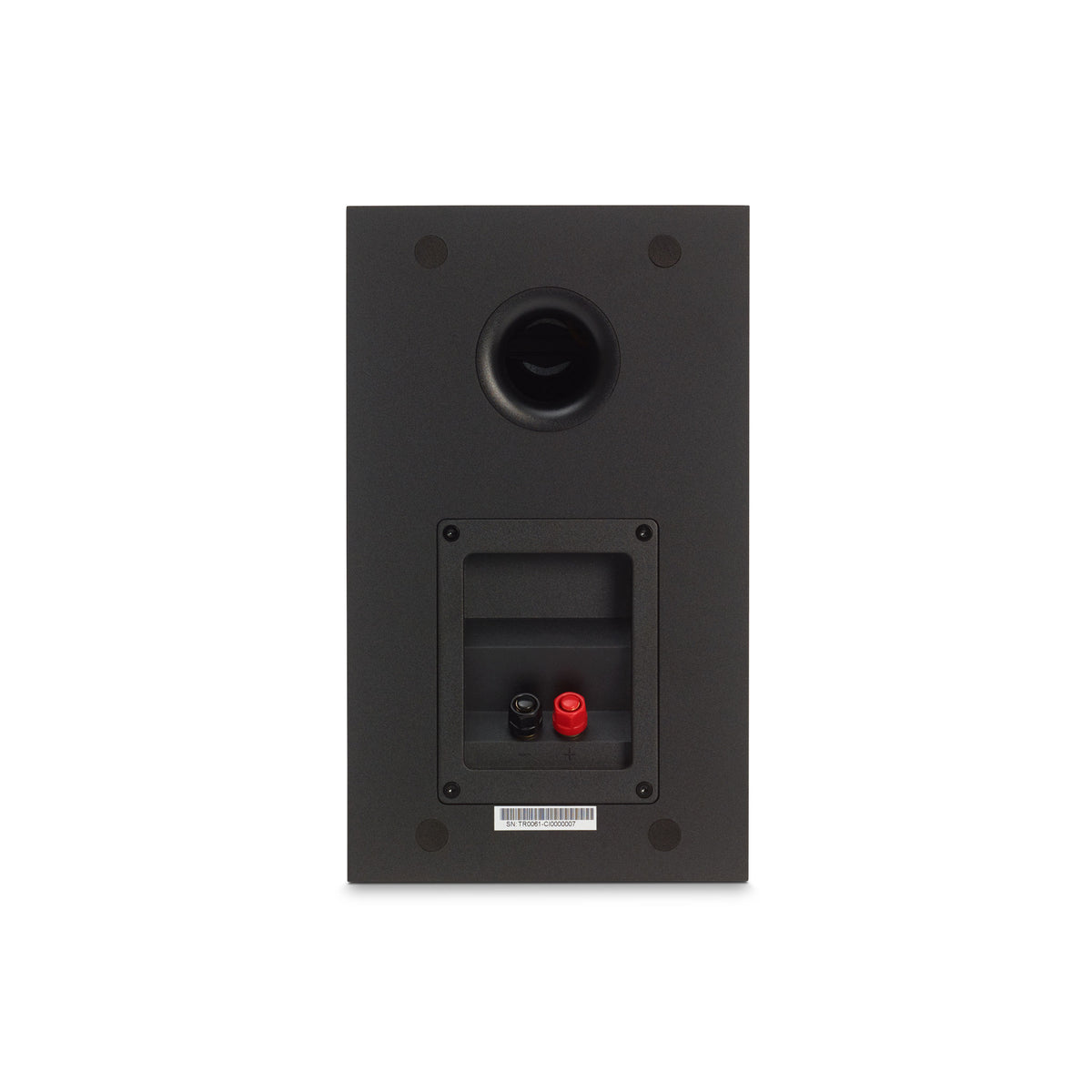

- Enclosure Type: Bass-Reflex via Rear-Firing Tuned Port
- Dimensions (W x D x H): 170 x 170
What's in the box
- 2 x JBL Stage A120 Compact Bookshelf Loudspeaker
- 8 x Feet Pads
- 2 x Foam Plugs
- 4 x Wall Brackets
- 8 x Screws for Wall Brackets
- 1 x Owner’s Manual
- 1 x Warranty Card
