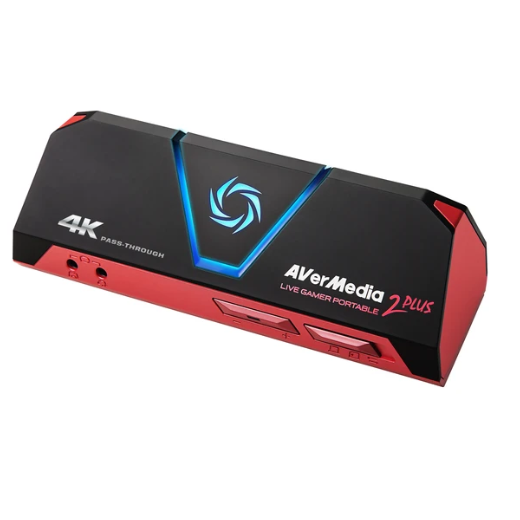

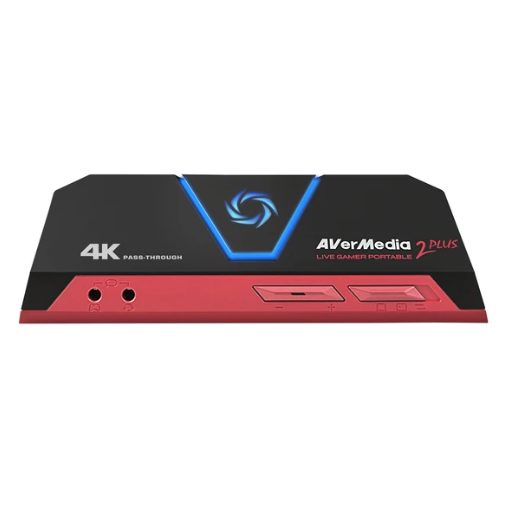

AVerMedia GC513 Live Gamer Portable 2 Plus

The AVerMedia Live Gamer Portable 2 Plus is an incredibly handy standalone game capture device with 4K pass-through, 1080p60 capture, and the ability to record footage directly to a microSD card without a PC.

Technical Specifications

•  Interface:USB 2.0 (USB Micro)
•  Video Input:HDMI 2.0
•  Video Output (Pass-Through):HDMI 2.0
•  Audio Input:HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio input from controller, Mic pass-through)*1
•  Audio Output (Pass-Through):HDMI 2.0 / 4 Pole 3.5mm Jack ( Audio pass-through from controller, Mic input)*1
•  Max Pass-Through Resolutions:4Kp60 / 1080p60
•  Max Record Resolutions:1080p60
•  Supported Resolutions (Video input):2160p, 1080p, 1080i, 720p, 576p, 480p, 480i
•  Operation Modes:PC mode, PC-free mode, Card reader mode
•  Record Format:MPEG 4 (H.264+AAC) / MJPEG / Supports hardware encoding
•  Dimension (W x D x H):147 x 57 x 47 mm (5.8 x 2.2 x 1.8in)
•  Weight:185.5g (6.54 oz)

Notes:

1. LGP2 PLUS does not support viewing/recording/streaming of HDCP protected signals

2. Micro SD Class 10 card is required for PC-Free recording, Micro SD card is not included.

3. Micro SD maximum capacity support: 128GB

4. Micro SD Supported formats: FAT32 format / exFAT format

- When using the "FAT32 format" microSD card,

Due to the specification of FAT32, movies are divided and saved every 4 GB (about 25 minutes).

- Continuous recording is possible when using "exFAT format" microSD card

System Requirements(For dedicated streaming PC)

Operating sytem: Windows® 10 / 8.1 / 7 / Mac OS X (Support UVC Protocol)

For 1080p60

Desktop:

- Intel® Core™ i5 CPU i5-3330 or comparable (i7 recommended)

- NVIDIA® GTX 650 / AMD Radeon™ R7 250X or above are recommended

- 4GB RAM

Laptop:

- Intel® Core™ i7-4810MQ

- NVIDIA® GeForce® GTX 870M

- 4 GB RAM (8 GB recommended)

Operating System: macOS X 10.13 or later (Support UVC Protocol)

For 1080p60

iMac 2013:

- 2.9GHz quad-core Intel Core i5 processor

- NVIDIA GeForce GT 750M graphics processor with 1GB of GDDR5 memory

- 16GB of 1600MHz DDR3L onboard memory

MacBook Pro 2013:

- 2.5GHz quad-core Intel Core i7 processor

- NVIDIA GeForce GT 750M with 2GB of GDDR5 memory and automatic graphics switching

- 16GB of 1600MHz DDR3L onboard memory

MacBook Pro 2017:

- 2.8GHz quad-core Intel Core i7 processor

- AMD Radeon Pro 555(2GB GDDR5) at least

- 16GB of 2133MHz LPDDR3 at least

What's in the box

• Live Gamer Portable 2 PLUS (GC513)

• HDMI cable

• USB Micro to Type-A cable

• 4-Pole 3.5mm audio cable

• Quick guide
