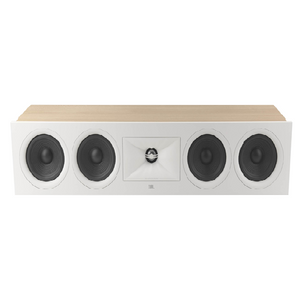

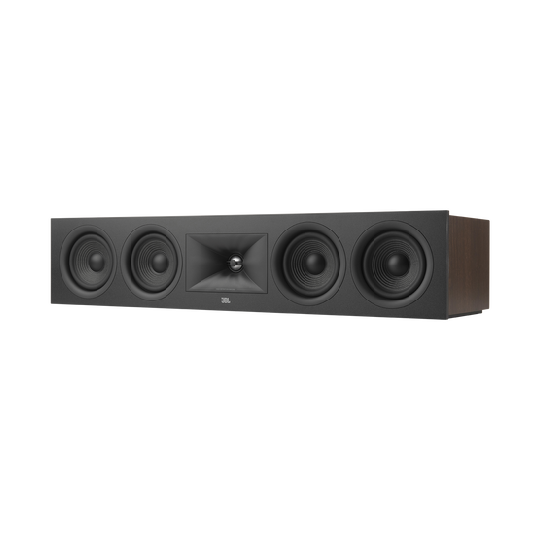

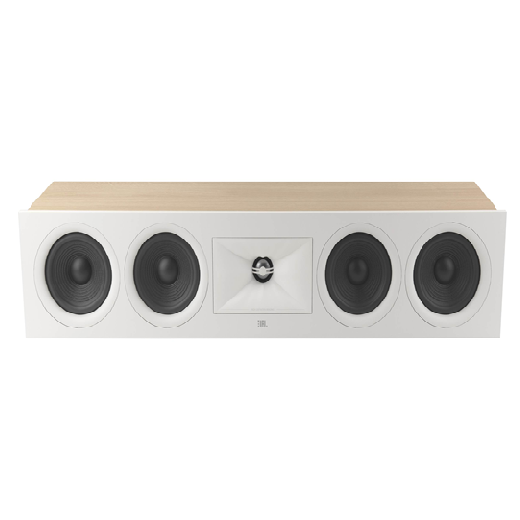

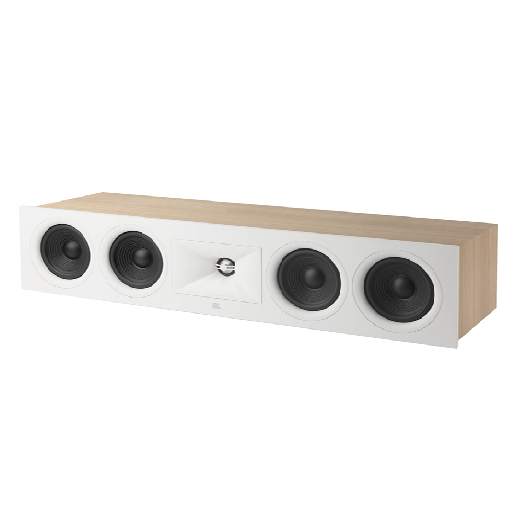

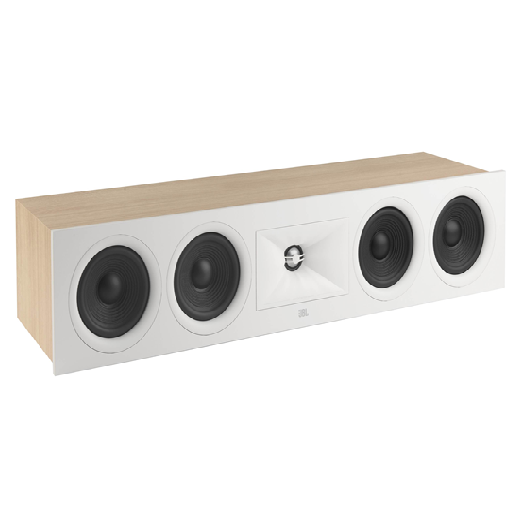

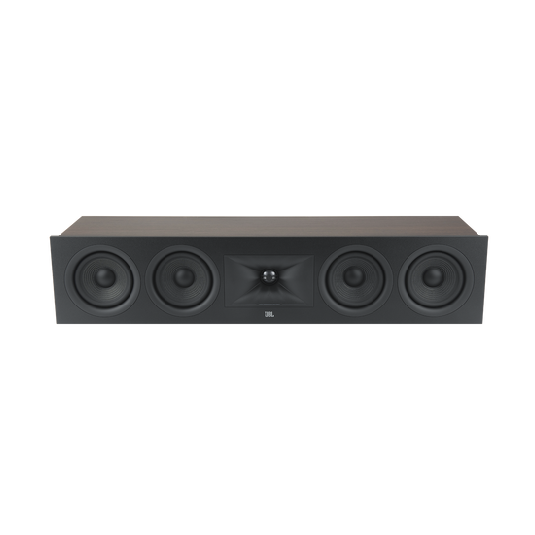

Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 245C is a center channel loudspeaker and is voiced to blend seamlessly with Stage 2 floor standing mains, bookshelf mains, or even In-wall mains. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI™) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and quad 4.5-inch (114mm) Poly cellulose ribbed cone woofers that provides deep, signature JBL bass.
Specifications:
-
Type: Center Channel Loudspeaker System
- Low Frequency Driver: Quad 4.5-inch (114mm) Poly cellulose Ribbed Cone
- High Frequency Driver: 1-inch (25mm) Anodized Aluminum
- Waveguide: Next Generation HDI™
- Recommended Amplifier Power: 20-150W
- Frequency Response ≡ 6dB: 55Hz-25kHz
- Sensitivity @ 1M, 2.83V: 91dB
- Nominal Impedance: 6 Ohms
- Crossover Frequencies: 1.3kHz/2.0kHz
- Enclosure Tuning: Bass Reflex via Dual Rear-Firing Tuned Ports
- Finish: Espresso or Latte
- Dimensions (HxWxD): 6.1in x 29.1in x 8.5in (156mm x 740mm x 217mm)
- Product Weight: 26.4 lbs. (12.0kg)
Features:
-
Quad 4.5-inch (114mm) Poly cellulose Ribbed Cone Woofers
- Precision 2.5-Way Crossover
- Next Generation HDI™ Horn
- 1-inch (25mm) Anodized Aluminum Tweeter

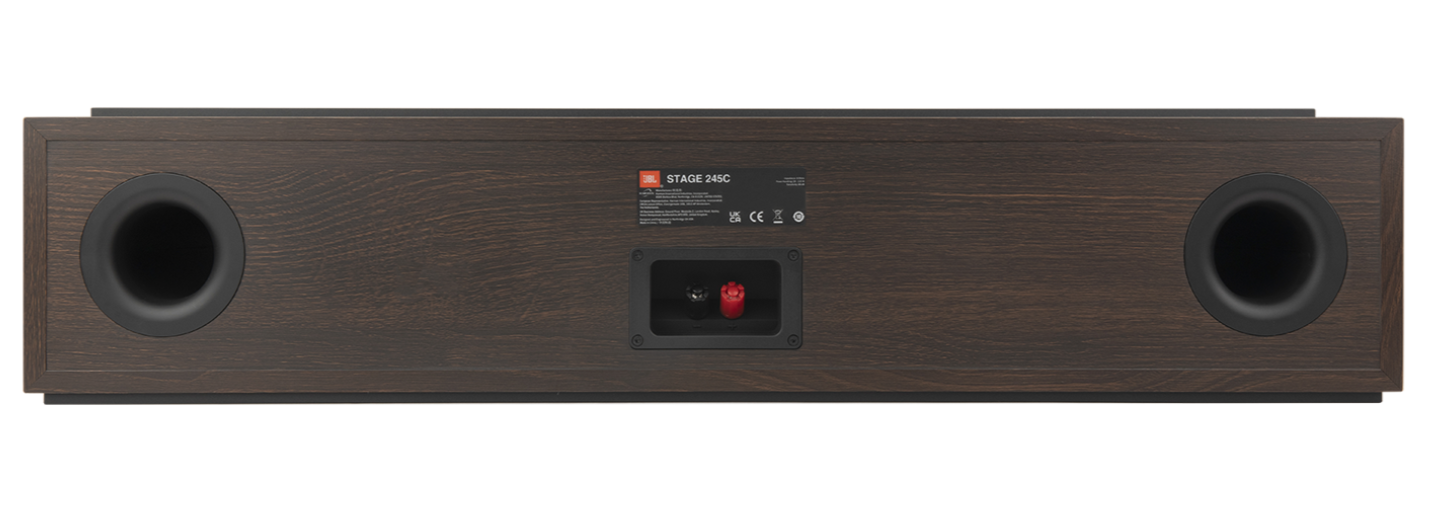

- Dual Rear-Firing Tuned Ports
- 5-Way Binding Posts
What's in the Box?
- 1 x 245C
- 6 x Anti-Slip Pads

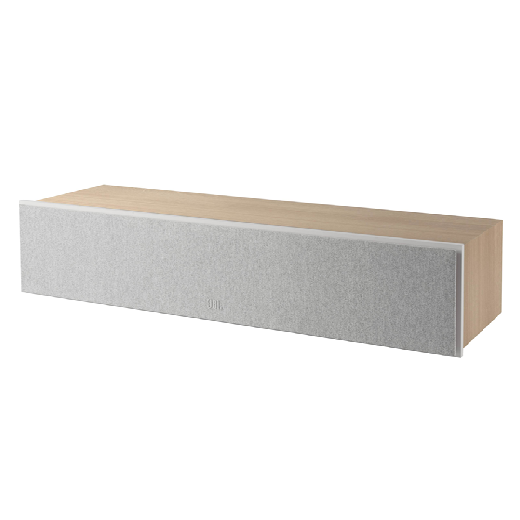

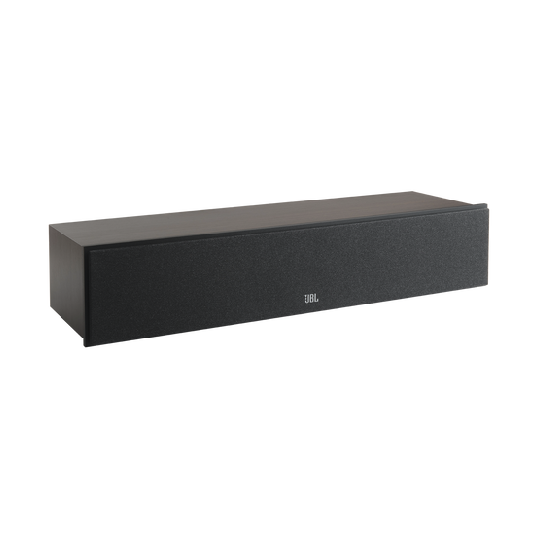

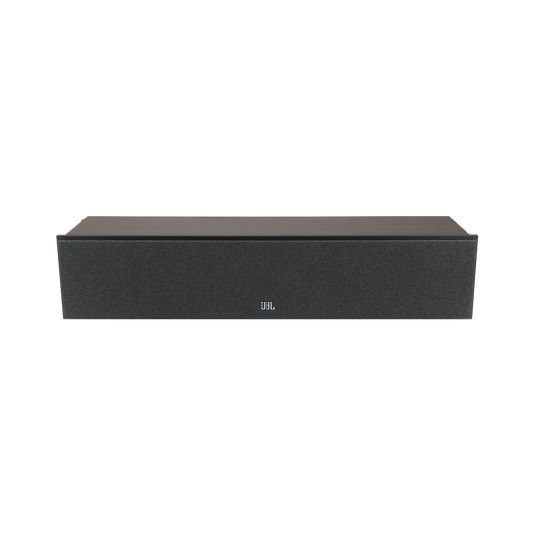

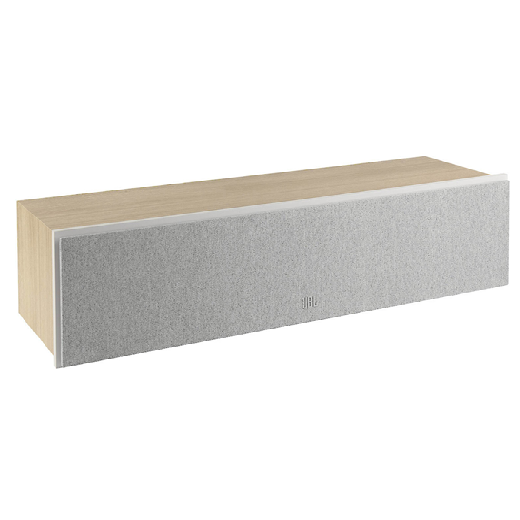

- 1 x Speaker Grille
- 1 x Safety Sheet
- 1 x Quick-Start Guide
